IntegraXor is a commercial industrial software. It runs with full features in demo mode by default which shall expire in 2 hours everytime it is started. A message will be prompted upon expiry, just exit the server and start again and no reinstallation is needed. Registered server will run permanently even after any promotion ends so long authorization is performed successfully.

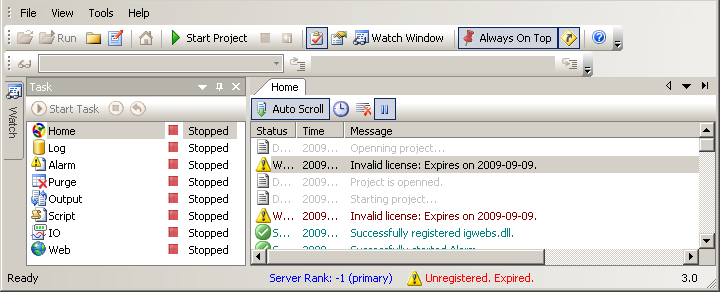

Note the status bar showing license is expired at the bottom.

The process of registration is such that the user shall generate the registration file *.ilr on the project designated computer, then send the registration file to your local agent or distributor, or directly to register@integraxor.com. The software vendor shall return another authorization file *.ila or software key based on the project and hardware configuration on that particular machine.

Its status can be checked from the menu, Help, then "License...". A pop up like below shall show the current licensing status.

License status and user information.

All details must be entered truthfully and correctly. Use mouse click or enter an arrow key to navigate from one field to another. The "Contact email" is especially crucial, the authorized file will be sent to the entered email address. Any future upgrade or changes will still based on this email address or at least another user name based on the similar web domain name, as such private web based email address shall be avoided. Once all fields are entered, the Registration file *.ilr can be generated by clicking the "Request..." button, and choose the desired directory. It's highly recommended to keep all licensing files in the project folder itself.

The Project I.D. is the main reference to the project that used in many places, especially the web address link, databases and so on. The default project I.D. 'template' and other generic names like 'project' or 'demo' which can be used repeatedly will be rejected. A good project ID should not contain spaces or odd characters to avoid any difficulty to type it out, as it will appear as part of the web address. The Web Client count is the desired number of remote mimic viewer, local viewer on the server for stand alone system is not counted.

The Physical I/O Count column allows user to select the number of I/O count or tag that associated with field devices' data required. Note that the suggested I/O number is always slightly higher than the used I/O tags, re-select a higher number if more I/O tags is needed. The counted number of I/O used is shown on the property box when the relevant driver is selected. Note that virtual/memory tag count is excluded and no limitation is imposed.

Demo license. Also note the tag counted shown at the far bottom: "156 physical I/O using this protocol"

Once the Authorization file is received, simply open up the License Window again and choose to import authorization code by clicking on 'Authorize...'. Browse the authorization file and accept it. These licensing files are encouraged to be stored in the project directory itself to avoid misplaced.

In certain circumstances, demo license with longer/specific expiry date can be requested. It's useful for longer evaluation period, or longer development on a temporary PC before the designated site PC is available, or for delivering a project to site/end user when the payment is still outstanding.

Important

Once the system is authorized or licensed, the registered information is not allowed to change.
